Galvanised Powder Coated Steel T-Post Clothesline
Original price
$17,400.00
-
Original price
$17,400.00
Original price
$17,400.00
$17,400.00
-
$17,400.00
Current price
$17,400.00

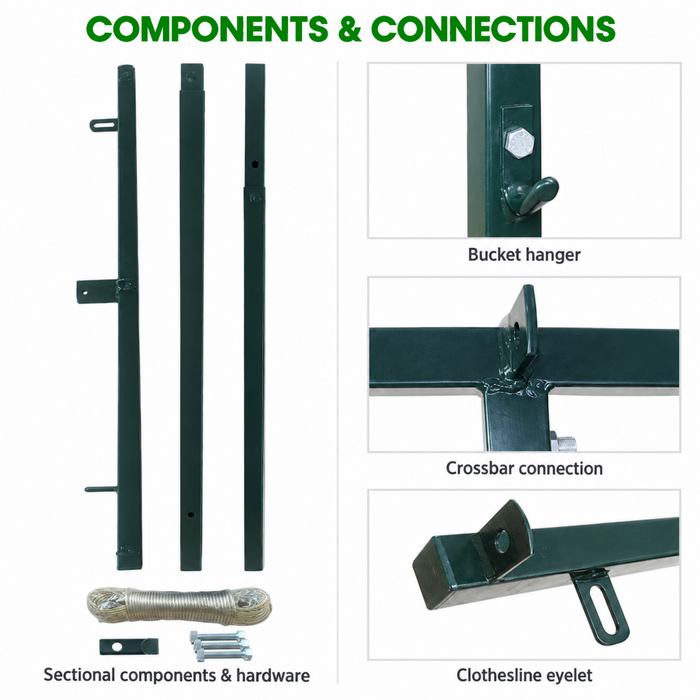

Parts List (For One Post) x 2
- 2 Powder Coated Galvanized Upright Posts: 2400mm / 8 feet
- 1 Powder Coated Cross Bar: 1200mm / 4 feet
- 3 Cord Line Loops
- 2 Hanging Loops
- 1 Bucket Hanger
- 2 End Caps
- 3 Bolts with Nuts (12mm Ø)
- 10m Clothesline Wire
Tools and Materials Required
- Drill
- 12mm Drill Bit
- Wrench
- Concrete Mix (1:2:4 mix ratio)
- Water
- Level
- Measuring Tape
- Shovel.
Assembly Instructions
- Step 1: Prepare the Ground - Select a flat, level area for installation. Dig two holes 600mm / 24 inches deep and 15 feet (max) apart for the upright posts.
- Step 2: Install Upright Posts - Place the upright posts in the holes. Mix concrete according to the 1:2:4 ratio and fill the holes around the posts. Ensure the posts are level and plumb. Allow the concrete to cure as per the manufacturer's instructions.
- Step 3: Attach Cross Bar - Position the cross bar between the two upright posts. Align the pre-drilled holes on the cross bar with those on the upright posts. Insert the bolts through the aligned holes and secure them with nuts. Tighten using a wrench.
- Step 4: Install bucket hanger as instructed in IMG (next page) End caps are already on the tube ends
- Step 5: Install Clothesline - Thread the clothesline through the cord line loops. Tie the ends securely to prevent slippage.
Safety Tips - Wear protective gloves and eyewear during installation. Ensure the concrete base is fully cured before using the clothesline. Regularly inspect bolts and nuts for tightness and re-tighten if necessary.
Maintenance - Check for rust or damage periodically. Touch up with galvanized paint if necessary. Keep the area around the base clear of vegetation and debris to prevent moisture accumulation.
