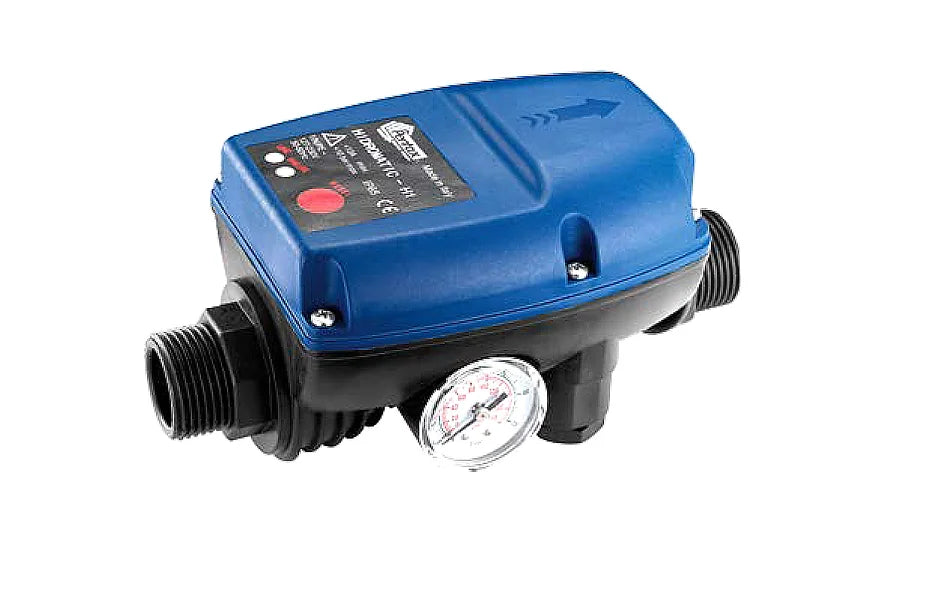

Pentax Hidromatic - H2 Control Device for Water Pumps 110/220V

• Complete replacement of the traditional water system set consisting of pressure switch and pressure tank
• Control the starting of the electric pump after a pressure decrease (taps opening) and stopping when the fluid flow interrupt at the maximum pressure level of the electric pumps (taps closing)
• Protection against dry running
• Starting pressure adjustable during the installation
• Standard 1”M hydraulic connections
• Installation in any position - both vertical and horizontal, according to the flow direction
• Easily replaceable electronic printed circuit board
• No need of maintenance

TECHNICAL DATA

• Power supply 110-230V ac ± 10% 50/60Hz
• Max rated current 12 A
• Starting pressure range 1 - 3,5 bar
• Max pressure 10 bar
• Protection degree IP65
• Max fluid temperature 55 °C
• Max ambient temperature 55 °C
