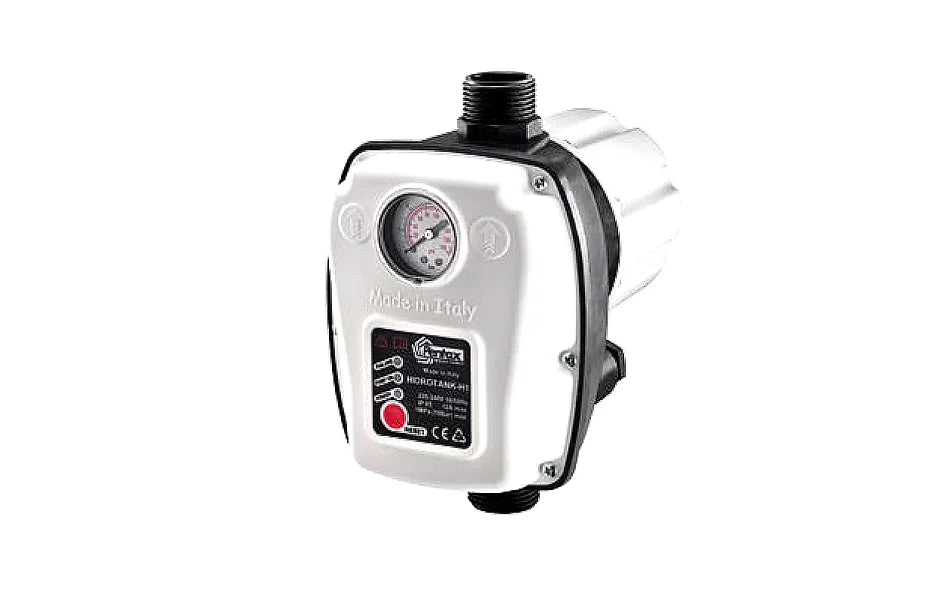

Pentax Hidrotank-H1 Electronic Flow and Pressure Controller 220V

• Automatic start  and stop operations of  single-phases electric pumps up to 2 HP
• Replacement of the traditional water system set consisting on pressure switch and pressure tank
• Control the starting of the electric pump after a pressure decrease (taps opening) and stopping when the fluid flow interrupt at the maximum pressure level of the electric pumps (taps closing)
• Protection against dry running
• Starting pressure adjustable during the installation
• Standard 1”M hydraulic connections
• Installation in any position-both vertical and horizontal - according to the flow direction
• Easily replaceable electronic printed circuit board.
• No need of maintenance
• Thanks to the 0,4 lt. tank  it protects  from  the  frequent start-stop required by small request of water and from anylosses into the system
• Protection of the  electronic  board  thanks to the new watertight compartment
• Protection from water-hammer
• New design and new concept
• Built in 0,4 lt. tank
• Built in pressure gauge
• Watertight electronic part

TECHNICAL DATA

• Power supply 110-230V ac ± 10% 50/60Hz
• Max rated current 12 A
• Starting pressure range 1 - 3,5 bar
• Max pressure 10 bar Protection degree IP65
• Max fluid temperature 35 °C
